PDUs & RPPs

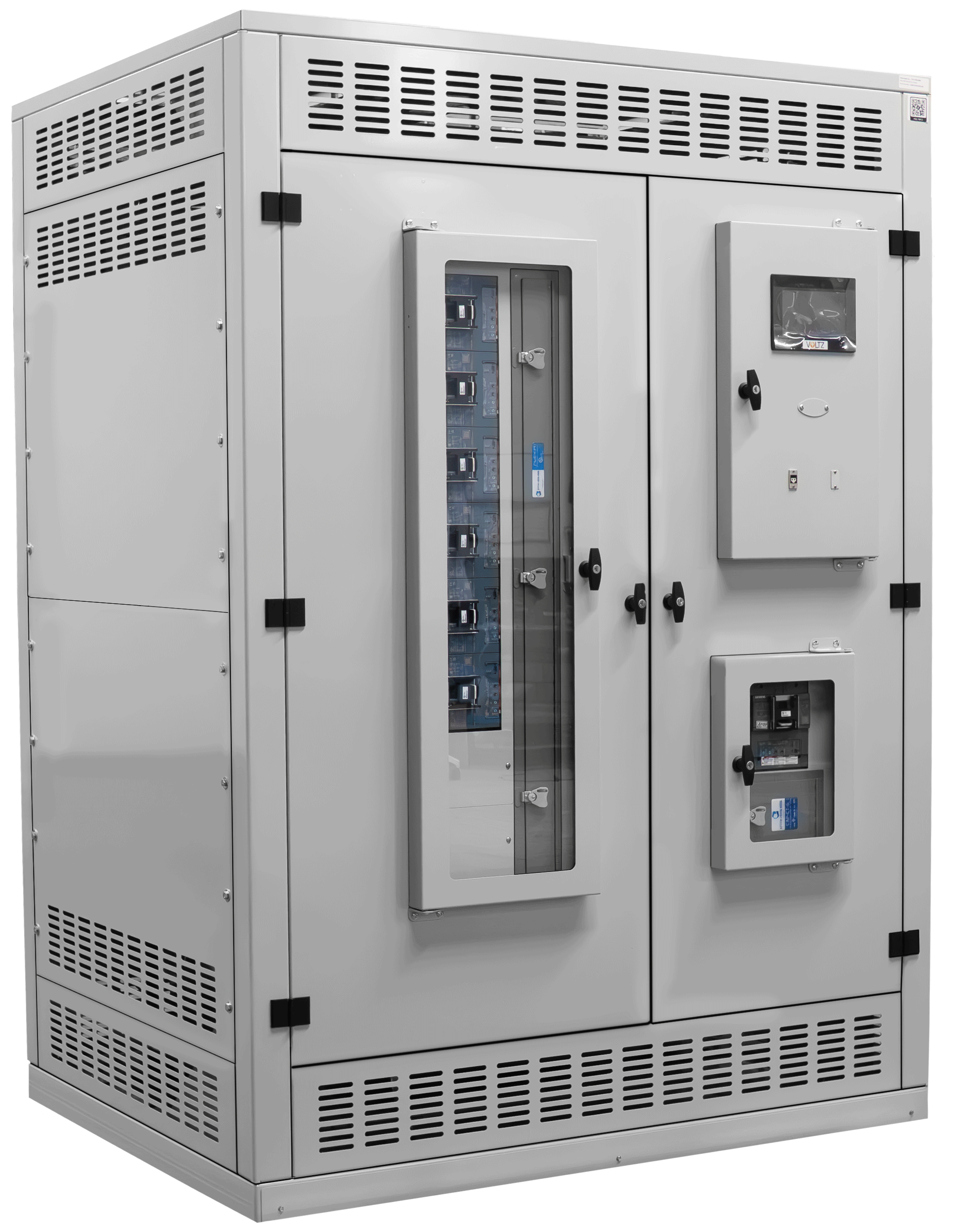

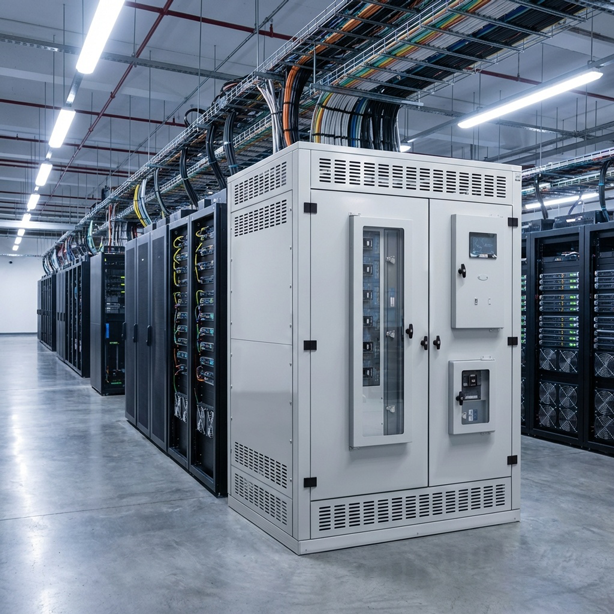

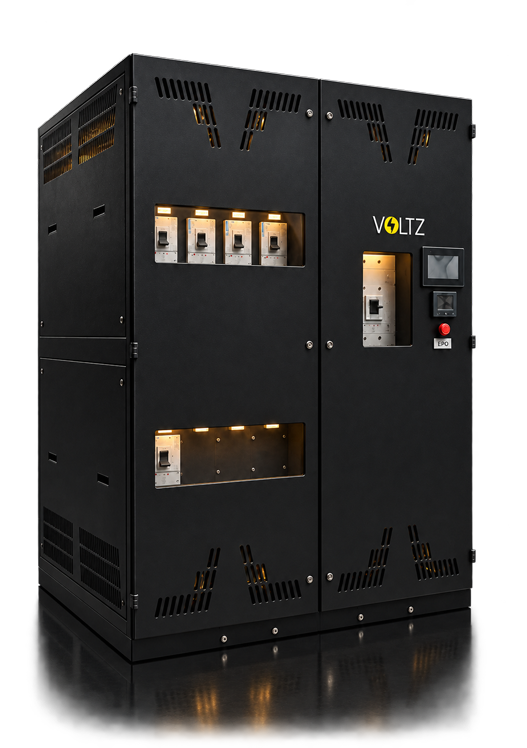

Discover the power of precision with the Voltz Power Distribution Units (PDUs). These units are specifically engineered for data centers and commercial applications, combining voltage transformation and circuit protection into a single, efficient point.

Offering power sizes ranging from 150kVA to 1000kVA, Voltz PDUs simplify high-current distribution. The units feature flexible internal transformers, enabling multiple input and output voltages. With customization options such as 415Y/240, 400Y/231, 208/120, we can meet any voltage requirements for your applications. Voltz PDUs are equipped with 100% rated, electronic trip circuit breakers from leading manufacturers, ensuring top-notch circuit protection.

For safeguarding critical loads, every unit comes with built-in TVSS/SPD on the primary side of the transformer. Plus, the design allows for power entry and exit from the top or bottom of the unit, enabling optimal installation configurations.

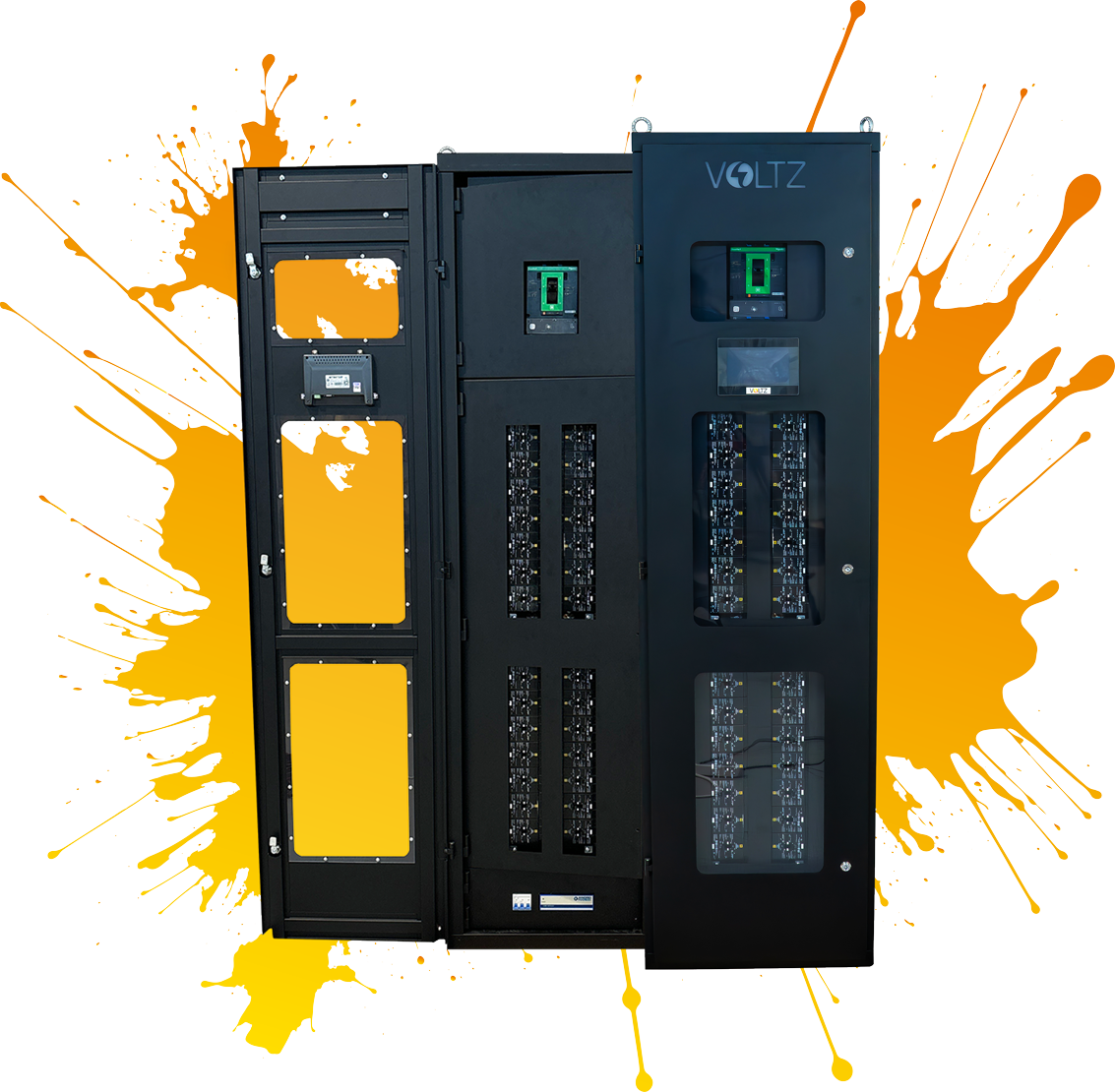

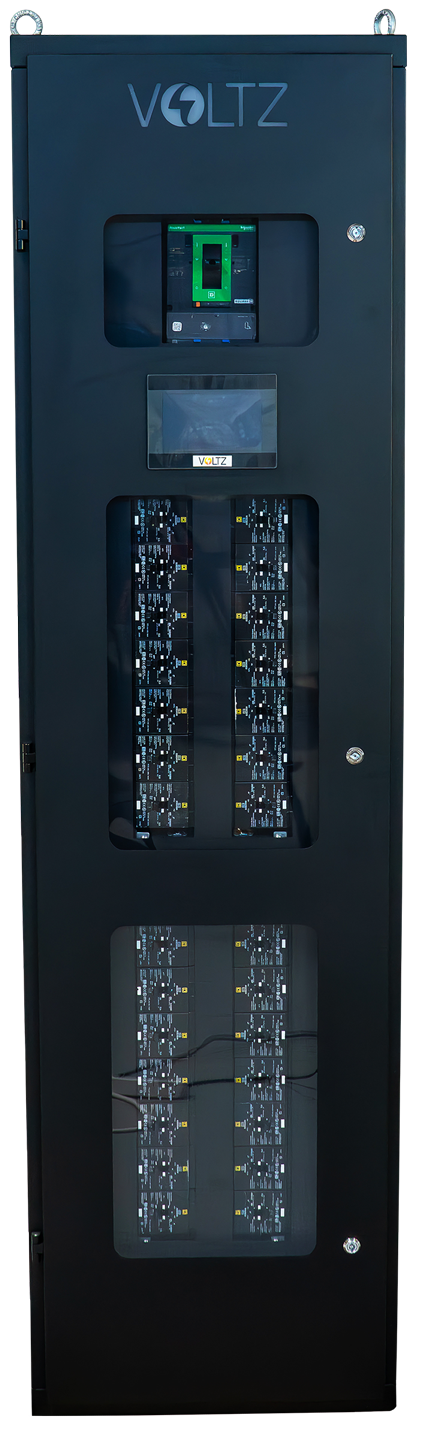

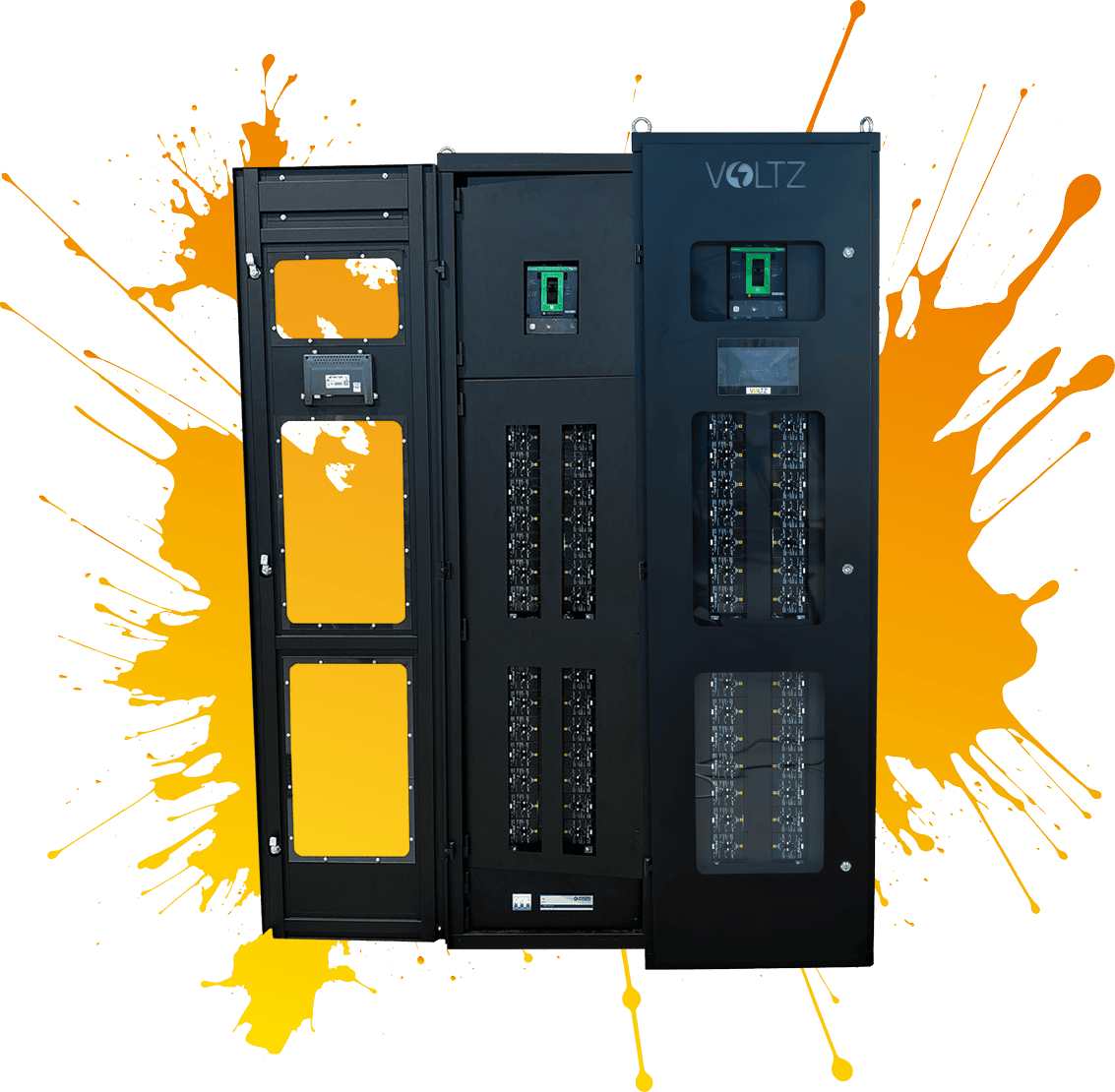

The Voltz Remote Power Panels are a versatile and configurable solution that accommodates a variety of input and output voltage configurations. The Voltz RPP is available as 208Y/120V, 208V DELTA, 415Y/240V, and 480Y/277V. Choose from MLO (main lug only) or input breakered units.

Voltz Remote Power Panels utilize only high quality Schnieder Electric panel board interiors. Choose from 42 poles or 84 poles and 250 amps or 400 amps. Custom options available with up to 168 poles.

Voltz Remote Power Panels only use 100% rated, adjustable trip, electronic trip circuit breakers for main input protection. Branch circuit breakers are UL 489 rated and matched to the manufacturer of the panelboard interior.

Optionally equipped with industry-leading revenue grade meters from major manufacturers that measure input and branch circuits as well as, capture, alarm, and log over 50 power parameters.

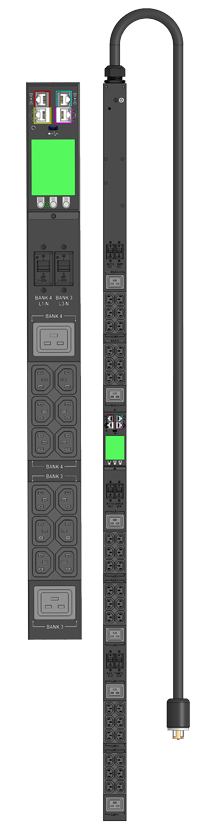

The Voltz Rack PDU streamlines power management in data centers with real-time power consumption insight and (optional) outlet switching. This advanced PDU offers seamless optimization, avoiding overloads and reducing energy use. Its (optional) smart outlet control enables sequence management, remote reboots, and outlet access control. With hot-swappable controllers, it's ready for future upgrades and minimizes repair time.

It allows up to 16 external environmental sensors for temperature, humidity, and airflow monitoring. Connectivity options include WebUI, SSH, SNMP, and RESTful API, and it integrates with DCIM and BMS systems. The rack also supports PoE power sharing and ensures high-level network security. Suitable for precision energy metering and various environments, it's ideal for colocation facilities and comprehensive data center power management.
